Product Details:
|
| Model NO.: | New Series LED 700 Mobile Type With Battery | Focusable Light-Field Size At 1 M: | 160~300mm |
|---|---|---|---|
| Color Temperature: | 4300 K | Depth Of Focus: | > 600mm |
| Power: | 110~230V 50/60Hz | Color Index Ra: | >95 |
| Effective Of Light Life: | >50, 000 Hours | Transport Package: | 1.5*1*0.48 M 109kg |
| High Light: | RA95 portable examination lamp,Dia 700mm mobile surgical light,4300K portable examination lamp |
||

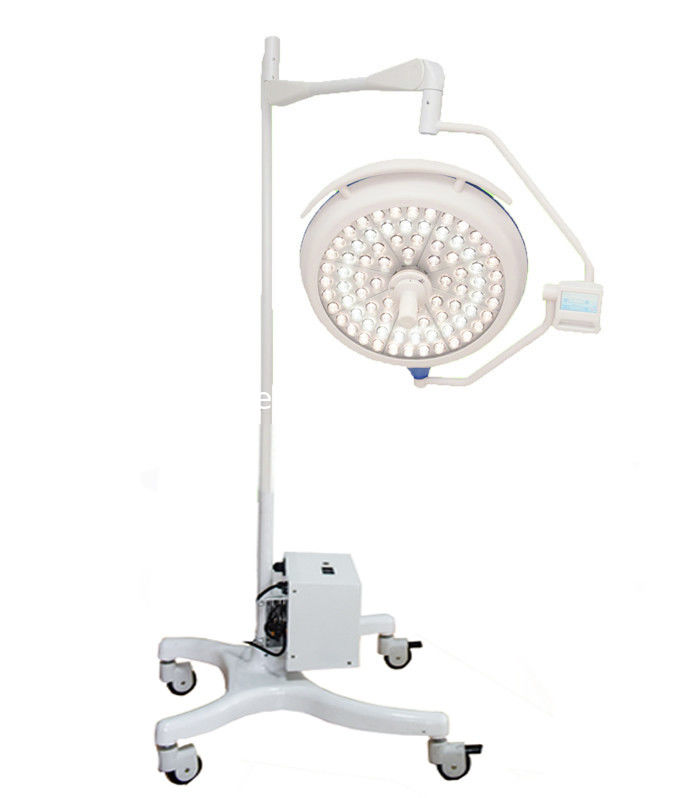

Medeco New Series 700 mobile with battery UPS Emergency Portable Operation Light mobile type with battery CE ISO
LED OPERATION LIGHT FEATURE
1. Imported Germany Osram medical LED bulb
2. Focus is controlled by DC Stepping motor
3. Computer touch pad with Color temperature, Focus and Illumination control function
4. Cold infrared-free light
In comparison to conventional halogen and gas discharge lamps, the "cold" LED light allowing for fatigue-free operating and prevents tissue from drying out in the OT field at the head area of the surgeon
5. High Luminance with optimum color rendering
Designed to provide a light output with a color rendering index and color temperature which is very close to natural daylight
6. Optimum design for clean air ceilings
Flow- optimized light head and reduced surface temperature minimize turbulence in laminar air flow
7. Long-lasting light sources -With a life cycle of at least 50, 000 operational hours
Medeco NEW Series LED Surgical Lamp Specification:
Imported Germany Osram medical LED Chip.
Computer touch pad with Color temperature,Focus and Illumination control function ;
* Illuminance:
700 mm lamp:40,000~170,000 lux ;
500 mm lamp:40,000~150,000 lux
* Focusable light-field size :160~300mm;
* Colour temperature:4,300±500K
* Depth of Lighting: >600mm
* Colour Index Ra:95
* Effective bulb service life >50,000h
LED OPERATION LIGHT CONFIGURATIONS
LED 700/700(700mm+700mm Lamp Head)
LED700/500(700mm+550mm Lamp Head)
LED 500/500(700mm+550mm Lamp Head)
LED 700 (700mm Lamp Head)
LED 500 (550mm Lamp Head)
New Series 700 mobile with battery Specification:
| Specification | 700 Light Head | 500 Light Head |
|---|---|---|
| Illuminance (Lux): | 50000-160000 | 40000-140000 |
| Colour Index (Ra): | 95 |
95 |
| Colour temperature (Kelvin) | 4300±500K | 4300±500K |
| Power(V/Hz) | 110~220/50 | 110~220/50 |
| Focusable light-field size (mm) | 160-300 | 160-300 |
| Effective bulb service life (hour) | >50000 | >50000 |
| Depth of Lighting (mm) | ≥ 700 | ≥ 700 |
| Lamp Dia | 700mm | 550mm |
| Installation height (mm) | 2900 | 2900 |
FAQ :
1. If we support OEM ?
Yes, we support OEM, could make the brand with customer logo and nameplate.
2. Waht kinds of certification do we have ?
We have Ce certification and ISO Certification.
3. What's our payment ways and methods?
Our payment ways is T/T: 30% before producing, and 70% before shipping the products.
L/C at sight and westunion.
4. Whats our delivery time ?
For samll pc such as 1 pcs , the exact delivery time is about 5 days after get the payment.
For large pcs,such as 100 pcs, about one month after receive the advance payment.
5. Whats your packing Details for New 700 mobile type ?
packing ctn size:1520*1000*480mm,G.W./N.W.:85/70KGS
6. What's your general shipping ways ?
Our general shipping ways is by sea, if customer is urgent also could arrange by air.
7. If there is battery inside the light base or lamp head ?
If you choose our common operation lamp ,there is no battery.
We also support ceiling lamp or mobile lamp with battery. But considering the safety of transportation, We can arrange the basic circuit and box of the battery, and then guide you how to purchase the battery in local areas.
8. How much time the battery could support ?
Our operating lamp battery could support 3-4 hours.
