Product Details:
|
| Model: | XYX-700 | Color Index Ra: | 93 |
|---|---|---|---|
| Effective Bulb Service Life: | 1000 Hours | Diameter Of Light Housing: | 500mm |
| Installation: | 2.9m | Focusable Light-field Size At 1 M Distance: | 160~250mm |
| Rated Wattage: | 150w | Installation Height: | 2.9meters |
| Total Halogen Bulb: | 2 Pcs | Power Supply Voltage:: | AC110-240v,50/60Hz |
| Delivery:: | 5~7 Days After Payment Received | Term:: | 100% T/T |
| High Light: | Single Dome Shadowless Operation Light,OT Shadowless Operation Light,160mm Shadowless Operation Light |
||

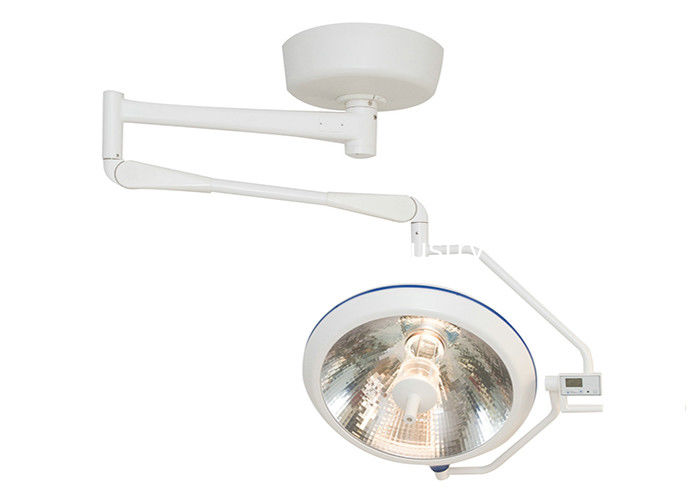

XYX-700 Single dome Shadowless Reflector Operating Light Hospital Surgical lamp Using Medical Equipment
Mermaid Series Multi reflector Operating light for every hospital room , every surgeon operation
Superior multi reflector operation light
Option:200 Germany Arm, Ac77 Gernany Arm, Chiese Arm.
Excellent Brilliance in depth
Multi aluminum reflector produces a large number of focus points on superimposed levels.
Feel comfort
Brightness control within a wide field; on/off switch on the control panel; infinitely variable focusing over sterile handle , automatic voltage control for constant illuminance ensure optimum operating environment .
Natural light operation environment
MERMAID Surgical lamp XYX-F700/700 create a natural white light with a color temperature of 4,300k-the temperature of day light on a bright day. In the operating room this is means that colours appear natural and tissue can easily be seen in detail.
Exact Cold light
Due to infrared filter, heat development underneath the light housing is strongly restricted. Under a MDBJ light the air around the surgeon's head only heats up by 2°C and max 10°C in the wound area
Perfect hygiene
MERMAID OPERATING LIGHT XYX-F700/700, the special designed light housing offers ideal flow characteristics and favorable thermal current system. Smooth surfaces without corners and edges as well as disinfectant resistant materials meet all demands of hygiene.
Tangible Ergonomic operation
OPERATING LIGHT XYX-F700/700 has an unhindered workflow: simple direct positioning, stop free mobility and absolute accuracy of position .The detachable handle provides for sterile operation.
Fail-safe: the optical light system
Permanent light safety is ensured by halogen bulb and automatic standby bulb start work in 0.2 seconds when main bulb be damaged. An infrared filter keeps both light and bulb cool and provides for a pleasant color temperature of 4,300k.
Maximum light intensity
MERMAID OPERATING LIGHT XYX-F700/700 offer 150,000 lux with a 16cm light field diameter, minimum heat development and low running costs.
Operation light for every hospital room, every surgeon operation
Technical specifications for Operating lights |
700 light |
700 light |
Central illuminance at 1m working distance |
50,000~150,000 lux |
50,000~150,000 lux |
Focusable light-field size at 1 m distance |
160~250mm |
160~250mm |
Colour temperature |
4,300K |
4,300K |
Depth of Focus |
≥ 700mm |
≥ 700mm |
Colour Index Ra |
93 |
93 |
Rated wattage |
150w |
150w |
Effective bulb service life |
1000h |
1000h |
Diameter of lamp housing |
700mm |
700mm |
Power |
220V/50HZ |
220V/50HZ |
Installation height |
290CM |
290CM |
Shadowless Lamp Packaging & Delivery
| 1 piece in a carton: | 1220*380*750mm |
| GW/NW: | 73/50kg |
| 1 piece in a carton: | 890*890*370 |
| GW:/NW: | 16.5/10kg |
| 1 piece in a wooden case: | 890*890*370 |
| GW:/NW: | 16.5/10kg |
FAQ:
A: Our MOQ is 1 pcs, we welcome new and old customers to place sample orders to experience our products and services.
2. What's your payment ways ?
A:Our payment ways as following:
If total value less than US$5000,we encourage customer pay all them in once time.
If total value more than US$5000, 30% TT before producing, and 70% TT before shipping time.
3. Can you support OEM using our band ?
A: Yes we are manuafacture and we have strict quality control department, we coul based on customer's demands printing their logo in the front of product, nameplate and other place.
4. How can I place a real order with your company?
A: Firstly,please let us know your details demands and specification and then we will recommends our suitable model;
Secondly, after confirming no problems for the model, confirming the quantity.
Thirdly, we will based on above information checking the best shipping ways.
Fourthly, We all details was confirmed, we will make a formal INvoice, after we get the deposit ,the order will be arranged.
5. How about the delivery time and shipping time ?
For some samll sample order, we generally using by airline, the delivery time about withion one week after receive payment, shipping time by air is about 7-10 days.
For large volume order, we recommend using by sea, the details shipping time will based on fact situation.
6. What kinds of certification do your company have ?
We have Ce certification and ISO Certificatioin.
