Product Details:
|
| Model: | MEY-5BW Healthcare Oxygen Concentrator | Type: | Home Healthcare Oxygen Concentrator |
|---|---|---|---|
| Flow Rate: | From 0.5-3L/min To 0.5-5L/min | Size: | 360×300×600mm |
| Purity: | 93%(±3%) Oxygen Concentrator | Power Consumption: | ≤350W |
| Net Weight: | N.W. 16Kgs | Feature: | Suitable For Clinics, Community Hospitals, Township Health Clinics |
| High Light: | 3LPM breathe oxygen machine,3LPM portable oxygen ventilator,16Kgs breathe oxygen machine |
||

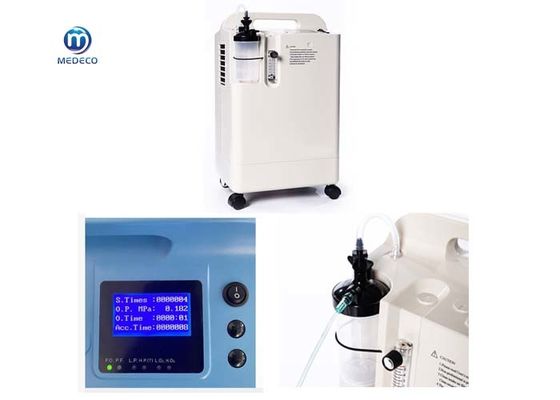

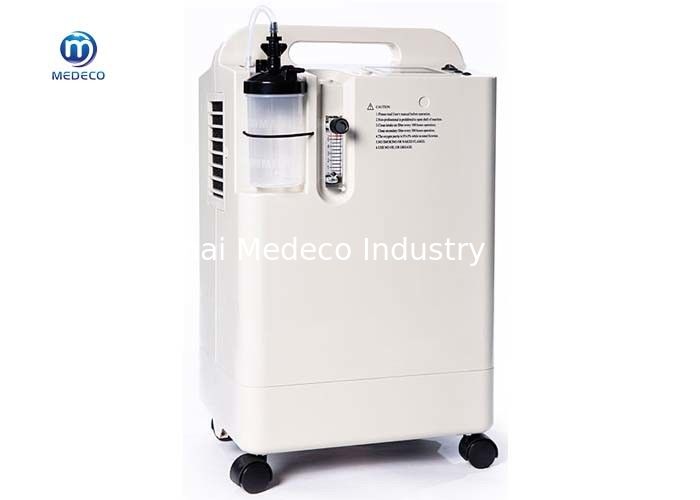

Mini Portable oxygen concentrator Homecare oxygen Generator MEY-3BW/5BW
Homecare Oxygen Generator Features:
Flexibly four-wheels easy to move
Filters are easy to replace and wash
The metal outlet is designed to be used with the humidifier adaptor
The easy dial flow control, makes setting the flow easy for any patients
Innovative big size LCd display convenient to view the operating parameters
US humidifier bottle with 6 PSI pressure relief valve, comfortable to inhale oxygen
Inner case housing adopt ceramics technique, non spray paint;
Customized mute cotton make sure non pulverization phenomenon min 3 years;
The inside pipeline use the medical grade silicone tube and nylon tube, more safe than industrial silicone tube and plastic tube, no pollution, no peculiar smell
Cooling system: copper tube and aluminum fins, compare with only aluminum or copper tube, better for heat dissipation and ensure the machine to continuously work fo
24 hours without overheat interruption
Mini Healthcare Generator Feature Description&Packing:
| Flow Rate | 0.5-3L/min; 0.5-5L/min |
| Purity | 93%(±3%) |
| Outlet Pressure | 6-10 PSI (0.04-0.07Mpa) |
| Sound Level | ≤40dB |
| Power Consumption | ≤350W |
| Input Frequency | 50Hz; 60Hz |
| Input Voltage | AC230V±10%; AC110V±10% |
| LCD Display | Switch time, operation pressure, present working time, accumulated working time from 10mins to 40hours |
| Net Weight | 16Kgs |
| Size | 360×300×600mm |
| Packing | 435 X385X680mm |
| Net weight | 16Kgs |
| Gross weight | 26kg |
*Alarm:
Power failure alarm
high & low pressure alarm
Low flow alarm
Low oxygen purity alarm: When oxygen purity is>82%,blue light illuminate.
When oxygen purity is <82%,red light illuminate,indicating low purity.
FAQ
Q1: What's your guarantee?
All our products have 1 year guarantee, if any quality problem can contact us.
Q5. Do you test all your goods before delivery?
Yes, we have 100% test before delivery.
