Product Details:
|
| Model: | MEY-15-4.0 Oxyen Concentrator | Purity: | 93%(±3%) |
|---|---|---|---|
| Power: | ≤ 2000W | Size: | 460×730×990mm/850x880x790mm |
| Flow Rate: | 0-15Lmin /0-20Lmin | Power Consumption: | ≤ 2000W |
| Net Weight: | 118Kgs | Feature: | Connect With Ventilator Or Anaesthesia Machine,etc |
| High Light: | 15LPM Oxygen Concentrator,15LPM portable o2 concentrator,118Kgs Oxygen Concentrator |
||

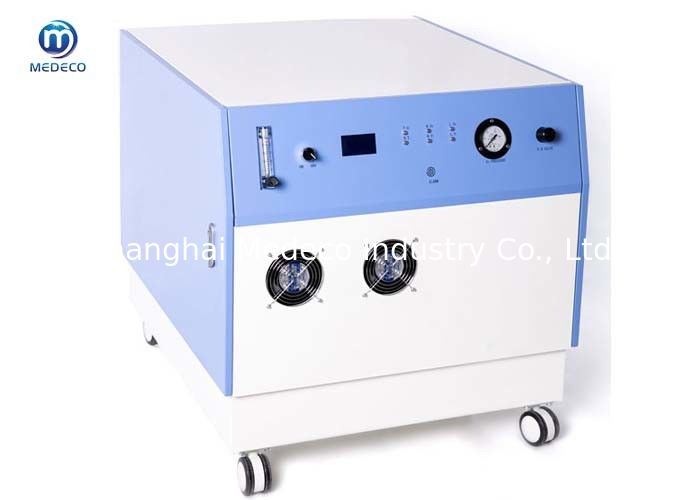

High Pressure Medical Mini Oxygen Concentrator MEY-15-4.0

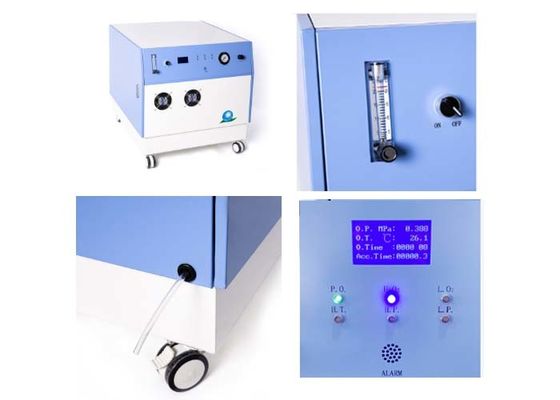

High Pressure Medical Oxygen Concentrator Features:
20-60 Psi outlet pressure ensure to connect with ventilator and the anesthesia machine
Seven sets of fans ensure the machine s operating temperature and more conducive to heat dissipat
The metal oxygen outlet supports the connection of various oxygen tubes
Two sets of filters easy to maintain the oxygen generator
Four big wheels easy to move flexibly
Optional connecting with oxygen tank from 200-3000L
Medical Use:
Connect with ventilator or anaesthesia machine in small hospitals
The machine is equipped with a cold dryer to ensure the stability of the machine
Medical Oxygen Concentrator Description&Packing:
*Flow Rate: 0-15L/min /0-20L/min
*Purity: 93%(±3%)
*Outlet Pressure:20-60PSI(0.14-0.4)Mpa
*Sound Level: ≤ 60dB
*Power Consumption: ≤ 2000W
*Net Weight: 118Kgs
*Size: 460×730×990mm/850x880x790mm
Packing:1140*550*910mm; 118kgs
1010*920*980mm; 294kgs
*Alarm:
Power failure alarm
high & low pressure alarm
Low oxygen purity alarm
When oxygen purity is>82%,blue light illuminate.
When oxygen purity is <82%,red light illuminate,indicating low purity.
