Product Details:
|
| Model: | MEY-20/40/40 Oxygen Concentrator | Purity: | 93%(±3%) |
|---|---|---|---|
| Power: | AC230V±10%; AC110V±10%, 50/60HZ | Size: | 860×630×1580mm/ 860x630x2120mm |
| Flow Rate: | 1-20L/min;1-40L/min;/1-60L/min | Net Weight: | 160Kgs/245Kgs |
| Power Consumption: | ≤1100W/≤2200W/ 3300W | Feature: | Medical Use, For Small Hospital Or Clinic Central Oxygen Supply |
| High Light: | 20L portable oxygen machine,20L portable oxygen making machine,60L portable oxygen machine |
||
Large Flow Medical Mini Oxygen Concentrator MEY-20/40/60
Medical Large Flow Oxygen Concentrator Features:
The emergency switch ensure the safety of machine operation

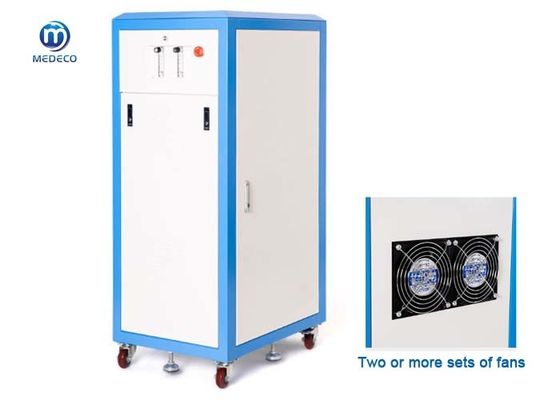

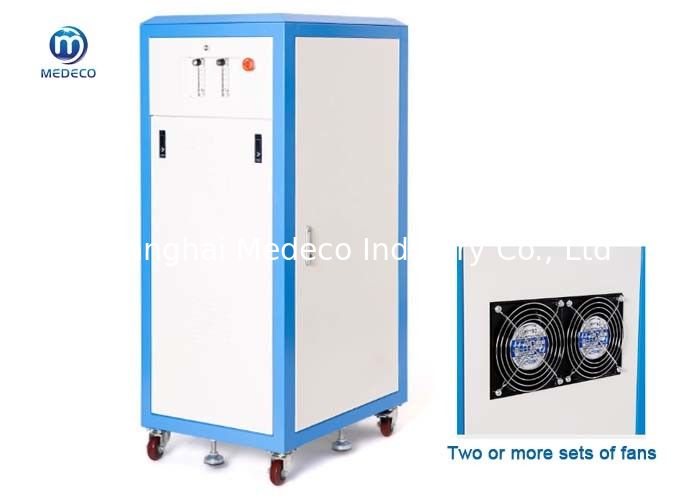

Two or more sets of fans ensure the machine s operating temperature and more conducive to heat dissipation
Four big wheels easy to move flexibly
Two sets of filters easy to maintain the oxygen generator
Optional booster pump: 2-8 Bar.
Small centralized oxygen supply: Oxygen supply to clinics and small hospital;
Sufficient flow, high oxygen concentration
After years of market testing, the performance is stable
Core control technology, special for industry
Reasonable structure design, convenient maintenance
The booster pump and oxygen storage tank can be optional to configure a small central oxygen supply system to centrally supply oxygen to a small hospital with 100 beds
MEY-40 Large Flow Oxygen Concentrator Description&Packing:
| Flow Rate | 1-20L/min; 1-40L/min;1-60L/min |
| Purity | 93%(±3%) |
| Outlet Pressure | 6-10 PSI (0.04-0.07Mpa); 20PSI (0.14Mpa) |
| Power | AC230V±10%; AC110V±10%; 50/60HZ |
| Sound Level | ≤60dB |
| Power Consumption | ≤1100W/ ≤2200W/ 3300W |
| Net Weight | 95Kgs/160Kgs/245Kgs |
| Size | 860×630×1580mm/860x630x2120mm |
| Packing |
860*630*1580mm; 203kgs 860*630*2120mm; 294kgs |
