Product Details:
|
| Model No.: | DT-12E LUXURY | Length: | ≥2100mm |
|---|---|---|---|
| Width: | 550mm | Tabletop Lowest Height: | ≤550mm |
| Trendelenburg: | ≥35º | Lateral Tilt(left And Right): | ≥25º |
| Specification: | CE | Load Capacity: | 350kg |
| Brand: | Medeco | Footplate(up/down/outward): | ≥90º |
| Origin: | China | Package: | Standard |
| Highlight: | 2100mm Electric OT Table,550mm medical examination table,350kg Electric OT Table |
||

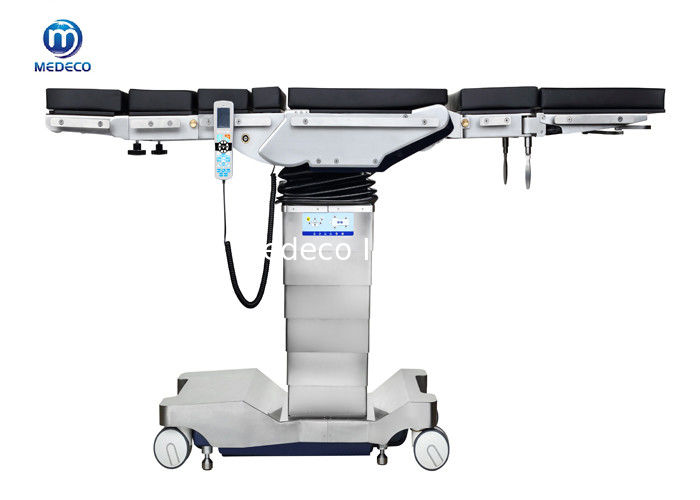

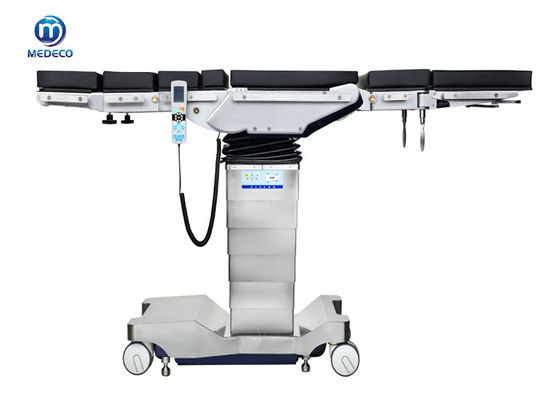

Electric Hydraulic Operation Table Medical examination Table Multi-Position Operating Table
Features of Operating Table:
Description of Operating Table:
The modular structure enables the opearting table to be adapted to mathch the size of the patient and in no time at all it can be equipped for any surgical discipline.
A longitudina shift of up to 310mm makes the operating table DT-12E LUXURY even more versatile.
Maximum and minimum heights of the operating table DT-12E LUXURY, not only suitable for kinds of surgery also for doctors's comfortable working, both seated and standing.
The table is controlled by a corded hand remote, in the event of emergency it can also be operated by the override control panel.
All of the essential operating table functions can be controlled by the hand remote and the override panel(e.g.Flex,Reflex, 0-positon or foot locking).The elevation of the kidney bridge is controlled by manual handle.
The modular structure of the table top is tailored for various surgical discipline needs, which also can low deown the cost of the hospital.
Operating table DT-12E Luxury is a multi-functional operating table that meets various requirements, such as chest ,kidney, cholecyst surgery, Endoscopic surgery,Gynecolorgic surgery,ENT surgery ect.
Patameter of Operating Table:
| Model | Length | Width | Tabletop lowest height | Elevation range |
| DT-12E LUXURY | ≥2100mm | 550mm | ≤550mm | ≥500mm |
| Movements | Model: DT-12E LUXURY | |
| Tabletop trendelenburg | Reverse trendelenburg | ≥35º |
| trendelenburg | ≥35º | |
| Lateral Tilt(left and right) | ≥25º | |
| Head plate | Up | ≥40º |
| Down | ≥90º | |
| Flexible | ≥40º | |
| Back plate | Up | ≥80º |
| Down | ≥45º | |
| Leg plate | Electric Up | ≥80º |
| Electric Down | ≥90º | |
| Manual Down | ≥90º | |
| Manual Outward | ≥90º | |
| Kidney Bridge Elevation | 120mm | |
| Horizontal Sliding | 310mm | |
| Power | 110-220v/50-60hz;1.0kW | |
| Flex | ≥225º | |
| Reflex | ≤100º | |
