Product Details:
|
| Model No.: | ECOH001 | Head Rest(up/down): | 45º/90º |
|---|---|---|---|
| Lifting Speed: | 4~16mm/s | Certification: | CE ISO Certification |
| Origin: | China | Package: | Standard |
| Length: | 2100mm | Width: | 500mm |
| Min.Height: | 700mm | Max. Height: | 1150mm |
| High Light: | 45 Degree Electric Operating Table,45 Degree Electric Hospital Bed,16mm/s Lifting Electric OT Table |
||

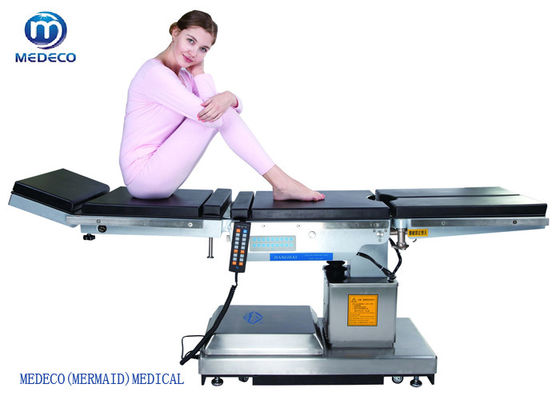

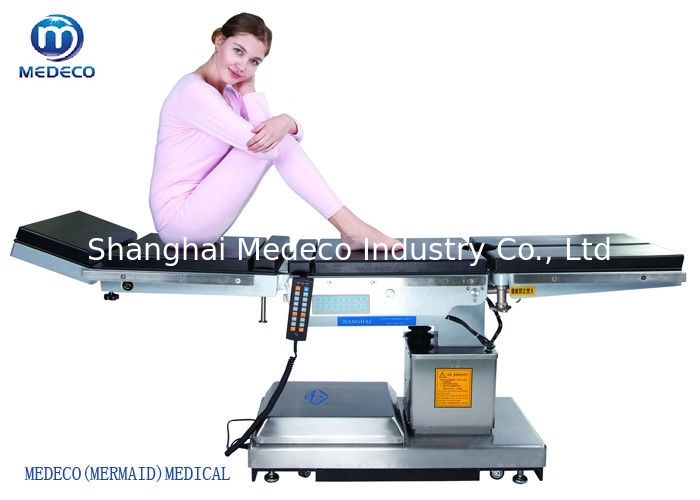

High Technical Electric Operating Table Surgical Operation Bed
Its technological advances make this Operating Table a good long term investment due to low maintenance and operating running cost.
Technical Data of Electric Operating Table:
Length of the Table: 2100mm
Width of the Table:500mm
Minimum Height: min.7 0mm
Maximum Height: max.1150mm
Adjust: 450mm
Head Length: 250mm
Back Length:465mm
Kindney Bridge:75mm
Seat Length: 630mm
Leg Section:600×240mm
Description of Electric Operating Table :
Electric hydraulic operating table ECOH001 applied a combination of modern technology and humanization design concept, electro-mechanical drive technology.
This product combine many functions:
1. Low lift and the distance of the mesa is 450mm. There is ample space for use with c-arm.
2.4-self-compensation-type floor the brakes locked, all mechanically operated emergency brake release systems.(Only Model JHDS-99E-1 has this function).
3. It has emergency power.It can be used when the electric power is off.
4. The mesa of the table can male V style body position 100°,Anti-V 220°.
5. Using memory foam, natural plastic in accordance with the patient's body temperature and body size, removable.(Optional Components).
Structure :Electric Hydraulic Operating Table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.
The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement , kidney bridge elevating ,V style and Anti-V, brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.
Movements Data of Electric Operating Table:
| Movements | Model: ECOH001 | |
| Tabletop trendelenburg | Reverse trendelenburg | 30º |
| trendelenburg | 25º | |
| Lateral Tilt(left and right) | 25º | |
| Head rest | Up | 45º |
| Down | 90º | |
| Back rest | Up | 75º |
| Down | 30º | |
| FootBoard | Up | 15º |
| Down | 90º | |
| Outward | 90º | |
| Kidney Bridge Elevation | 80mm | |
| Power | 110-220v/50-60hz;1.0kW | |
| Load capacity | 150kg | |
| Lifting speed | 4~16mm/s | |
Standard Accessories:
| Head section | 1 |
| Anaesthetic Screen | 1 |
| Body support | Large 1.smart 1 |
| Shoulder support | 2 |
| Arm rest | 2 |
| Knee crutch | 2 |
| Cushion | 1 |
