Product Details:
|
| Model No.: | DT-12E NEW TYPE | Length: | 1970mm |
|---|---|---|---|
| Width: | 500mm | Height: | 690mm-1100mm |
| Load Capacity: | 250kg | Head Rest(up/down): | 60º/90º |
| Longitudinal Sliding: | 350mm | Votage: | 110~220V 50/60Hz |
| Certification: | CE ISO Certification | Brand: | Medeco |
| Origin: | China | Package: | Standard |
| Highlight: | 1970mmx500mm Electric Operating Table,1970mm Gynecology Examination Table,Load 250kg Electric Operating Table |
||

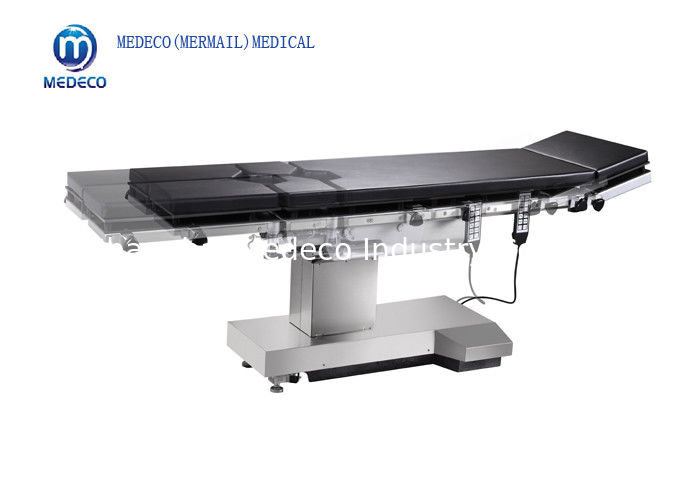

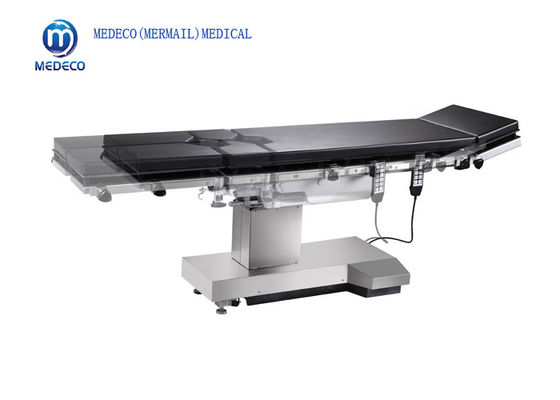

Operation Room Table Electric Operating Table Hydraulic Operation Tabel Gynecology examination Table
Function Characteristic of Electric Operating Table:
1. Longitudinal sliding up to 350mm for free access to C arm and X-ray.
2. Large-scale elevation makes the operating table easier for C-arm fluoroscopy examination
3. With built-in kidney bridge suit for kidney operation.
Description of Electric Operating Table:
Desgined for increasing complex surgical scenes, Our electric hydraulic operating table with multi-functional DT-12E new type can satisfy various demands of general surgeries. Longitudinal sliding up to 350mm for free access to C arm and X-ray.
The "T-shape" base design makes enough free space for the doctors. High automation, low noise, high reliability.
Optional traction for orthopedics, head rest for Aural surgery, extend functions of the table The cover all adopted premium 304 stainless steel, the main body used cast aluminum, anti-rust and corrosionthe tabletop adopted phenol aldehyde Photograph board which is suitable for X-Ray.
Specification:
| Model | Length | Width | Tabletop Elevation |
| DT-12E new type | 1970mm | 500mm | 690mm~1100mm |
| Movements | Model: DT-12E NEW TYPE | |
| Tabletop trendelenburg | Reverse trendelenburg | 30º |
| trendelenburg | 30º | |
| Lateral Tilt(left and right) | 18º | |
| Head rest | Up | 60º |
| Down | 90º | |
| Back rest | Up | 90º |
| Down | 45º | |
| FootBoard | Up | 15º |
| Down | 90º | |
| Outward | 90º | |
| Kidney Bridge Elevation | 120mm | |
| Longitudinal sliding | 350mm | |
| Power | 110-220v/50-60hz;1.0kW | |
| Load capacity | 250kg | |
| Battery Specification | 12Volt9Ah | |
Standard Accessories:
| Pads | 1 set |
| Leg support | 1 pair |
| Arm support | 1 pair |
| Shoulder support | 1 pair |
| Body support | 1 pair |
| Anesthetic Screen | 1 pc |
| Footboard | 1 pair |
