Product Details:
|
| Model: | XYX-700 700 Doulbe Dome Operating Light | Effective Bulb Service Life: | 2000 Hours |
|---|---|---|---|
| Diameter Of Light Housing: | 700mm | Installation: | 2.9-3.1m |
| Focusable Light-field Size At 1 M Distance: | 160~250mm | Rated Wattage: | 150w |
| Total Halogen Bulb: | 2 Pcs | Power Supply Voltage:: | AC110-240v,50/60Hz |
| Delivery:: | 5~7 Days After Payment Received | Term:: | 100% T/T |
| Packing Size: | 1220*380*750mm | Warranty: | 1 Year |
| High Light: | 700mm OT Shadowless Operation Light,700mm shadowless operating lamp,150000 Lux ot light single dome |
||

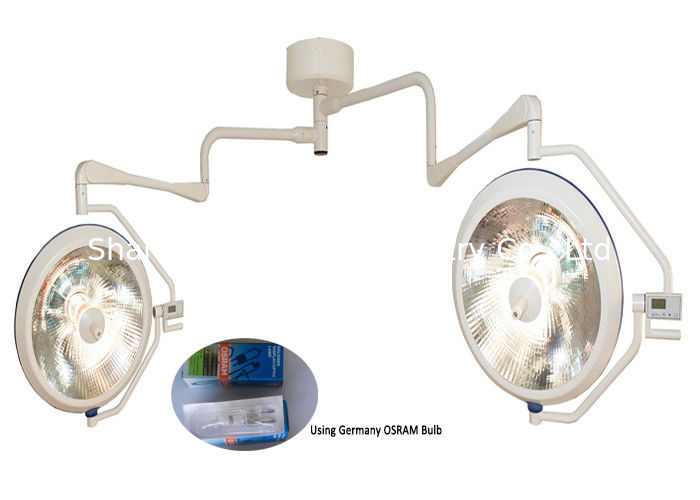

XYX-700 Shadowless Operation Lamp OT Light Reflectors Operating Room Light Single Dome
Operating Light Configuration:
1. Round Falun plate base
Shadowless Operating Lamp Feature:
1. operating light offering 150,000 lux with a 16cm light field diameter, minimum heat development and low running costs.
2.Brightness control within a wide field; on/off switch on the control panel; infinitely variable focusing over sterile handle , automatic voltage control for constant illuminance ensure optimum operating environment .
3.Due to infrared filter, heat development underneath the light housing is strongly restricted. Under a MDBJ light the air around the surgeon's head only heats up by 2°C and max 10°C in the wound area
4.Permanent light safety is ensured by halogen bulb and automatic standby bulb start work in 0.2 seconds when main bulb be damaged. An infrared filter keeps both light and bulb cool and provides for a pleasant color temperature of 4,300k.
Operating Light Specification :
Technical specifications for Operating lights |
700 light |
500 light |
Central illuminance at 1m working distance |
50,000~150,000 lux |
50,000~150,000 lux |
Focusable light-field size at 1 m distance |
160~250mm |
160~250mm |
Colour temperature |
4,300K |
4,300K |
Depth of Focus |
≥ 700mm |
≥ 700mm |
Colour Index Ra |
93 |
93 |
Rated wattage |
150w |
150w |
Effective bulb service life |
1000h |
1000h |
Diameter of lamp housing |
700mm |
700mm |
Power |
220V/50HZ |
220V/50HZ |
Installation height |
290CM |
290CM |
Shadowless Lamp Packaging & Delivery
| 1 piece in a carton: | 1220*380*750mm |
| GW/NW: | 73/50kg |
| 1 piece in a carton: | 890*890*370 |
| GW:/NW: | 16.5/10kg |
| 1 piece in a wooden case: | 890*890*370 |
| GW:/NW: | 16.5/10kg |
