Product Details:
|
| Model: | II 700/500 LED Operating Light With Camera System | Camera: | Medical HD Camera System |
|---|---|---|---|
| IIIuminance For 700 Head: | 40,000-160,000lux | Colour Temperature: | 3500~5000K |
| Illuminance For 500 Head: | 40,000-120,000lux | Certification: | CE,ISO Certification |
| Power Supply: | 110~240V 50/60Hz | Colour Index Ra: | 95 |
| Effective Bulb Service Life: | >50, 000h | Installation Height: | 2.9-3.2meters |
| Medical Grade: | Class II | Delivery: | Withion 20days After Received Payment |
| Highlight: | 160000 Lux LED OT Light,160000 Lux portable led light,5000K LED OT Light |
||

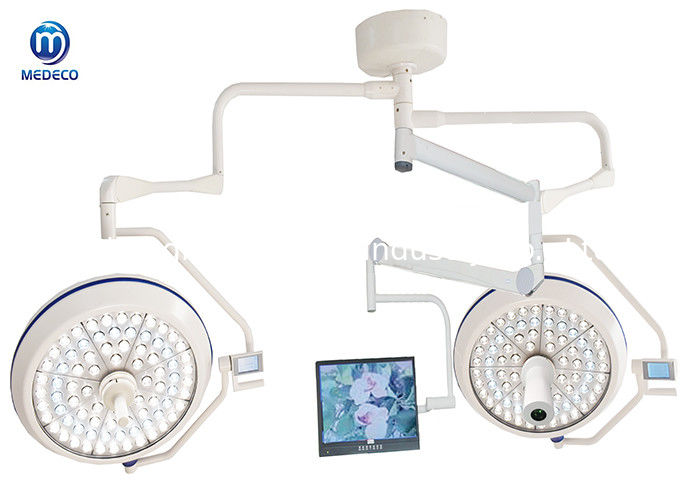

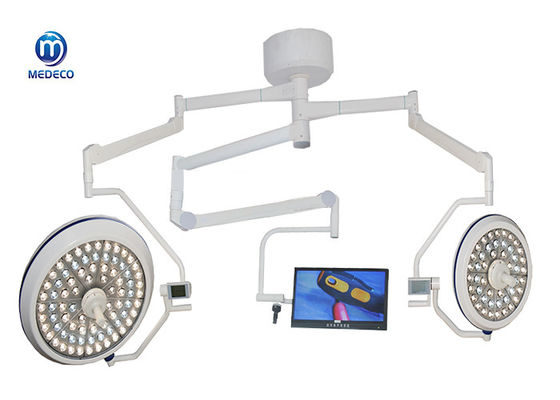

II 700/500 LED Operating light with camera system Medical LED Operation room Surgical Light with HD Camera system
II LED 700/500 OT Light Camera system Feature :
1.II Series LED OT light using Germany LED light sources with a high-performance OSRAM lens.
2. The Color temperature is adjustable from 3500K to 5000K by four levels, while maintaining the color rendering index of Ra 95.
3. The service life for Germany OSRAM LED bulbd reach to 50,000hours,and each led can be replalce.
4. Within the whole adjusting, the illumination intensity of ME LED700 can achieve up to 160, 000 lux.
| MEDECO LED OT LIght HD camera system Parameter | |
| Image Sensor | 1/2.8" CMOS |
| HD Digital Pixel(Resolution) | Imported Sony HD>2 million pixels(1920X1080) |
| Aspect Ratio | 16: 9 |
| Lens | 10X Optical zoom&12X Digital zoom F=1.8-2.5(f=6.3~63mm) |
| Minimum Luminance | Colour 2.0 Lux, Black white 0.1 Lux |
| White Balance | Indoor/fluorescent light/halogen light/LED light Model, signal can be adjust |
| Minimum Object Distance | 800 mm |
| Signal/Noise Ratio | 50 dB |
| Output connection | 1. HD SDI 2. HDMI |
| Medical Monitor | Full HD medical level, 22", SDI Interface |
The standard confirguration for LED 700/500 with camera system operation lamp:
1.Double LED lamp head: 700 lamp head, 500 lamp head
2.Triple ceiling arms(Chinese Round Arm)
3.Triple Balance Arms (Chinese Round Arm)
5.SONY HD Camera System
6.Medical Monitor(Full HD Medical Level, 22inch SDI interface)
7.Four sterilizer handling
