Product Details:
|
| Model: | ME2000A Electric Operation Table | Feature 1: | Imported Germany Hydraulic Engine |
|---|---|---|---|
| Feature 2: | Imported Electromagnetic Valve | Feature 3: | Imported Sealing Ring |
| Feature 4: | AC/DC | Feature 5: | Auto Restoration |
| Feature 6: | Do X-ray&C-arm | Length:: | 2000±100mm |
| Width:: | 520±20mm; | Min-max Height:: | (700-1150)±50mm |
| High Light: | AC DC Hospital Electric Operation Table,2000mm Length Electric Operation Table,Auto Restoration Electric Operation Table |
||

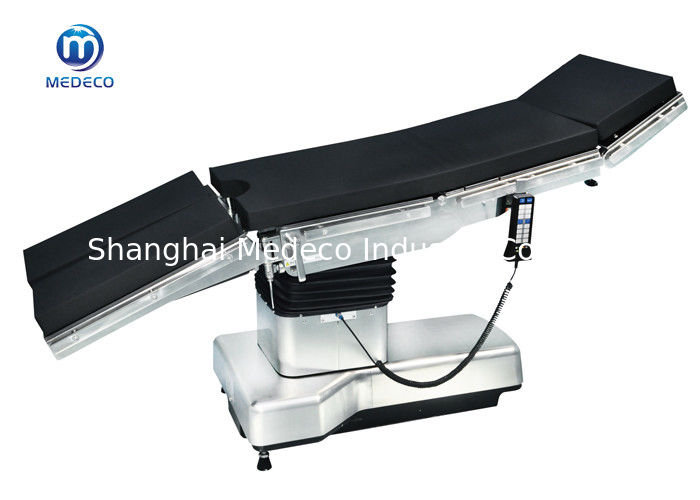

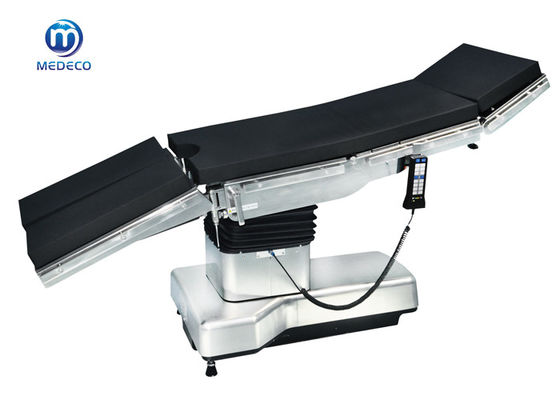

ME2000A Electric operation table (electric hydraulic)
ME2000A Electric operation table is applied for various operating in medical units.
Features of ME2000A Electric Operation Table:
1. The tabletop adopts high quality of carbon plastic plate, and it can slide, which is convenient for C arm exam and X-ray photography.
2. The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.

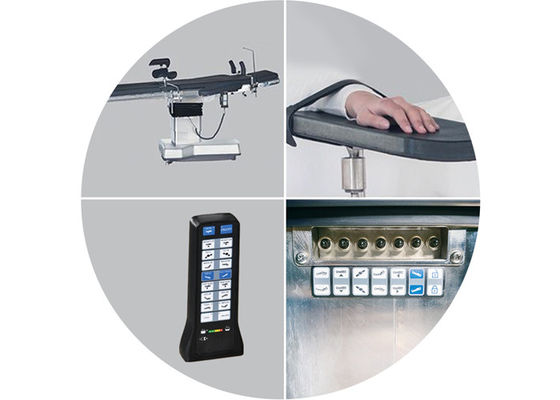

3. Hand held controller and panel controller are available to control various movements. Self-locking function is provided to avoid false triggering
4. ◆ One press to“∧"or“V.
5. AC and DC can use at the same time It has the function of auto-restoration.
6. Quality stainless steel 304 is used for table support, base plate column shield and rails on both sides of the table and other accessories.
7. Electric braking device, convenient for shifting the table.
8. The head board and leg plate are controlled by imported gas spring Leg plate is split and detachable.
| 1. Imported Germany hydraulic engine |
| 2. Imported electromagnetic valve |
| 3. Imported sealing ring |
| 4. AC/DC |
| 5. Auto restoration |
| 6. Do X-ray&C-arm |
| 7. The table top can sliding |
Accessories:
A Pair of Shoulder/waist Support, A Pair of Arm Support, A Pair of Leg Plate, A Screen.
TECHNICAL SPECIFICATION Of ME2000A Electric Operation Table:
| length: 2000±100mm |
| width: 520±20mm; |
| min-max height: (700-1150)±50mm |
| Trendelenburg: ≥ 28° Rev-Trend: ≥ 28° |
| leftward: ≥20° Rightward: ≥ 20° |
| head board Upward: ≥ 50° Downward: ≥ 90° |
| backboard Upward: ≥ 75° Downward: ≥ 50° |
| leg board Upward: ≥ 10° Downward: ≥ 90° |
| leg board outwards:≥180° |
| mains voltage: AC220 50HZ |
| accumulator Cell: 12V 12Ah |
| input power: 500VA |
| Horizontal and longtidinal movement: 300±30mm |
| DIMENSION (MM): 1314×764×1030 |
| G.W.(KG): 400 |
FAQ:
Q1 : Whats your MOQ ?
Our MOQ is one psc, welcome to trial order before our formal cooperation.
Q2:If your company support OEM ?
Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.
Q3: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
