Product Details:
|
| Model: | ME2000B Electric Operation Table | Advantage 1: | Germany Hydraulic Engine |
|---|---|---|---|
| Advantage 2: | Electromagnetic Valve | Advantage 3: | High Quality Sealing Ring |
| Advantage 4: | AC/DC | Advantage 5: | Auto Restoration |
| Advantage 6: | With X-ray&C-arm | Length:: | 2000±100mm |
| Width:: | 520±20mm; | Min-max Height:: | (700-1100)±50mm |
| Highlight: | Medical Hydraulic Electric OT Table,Hydraulic Engine Electric OT Table,SS304 Electric OT Table |
||

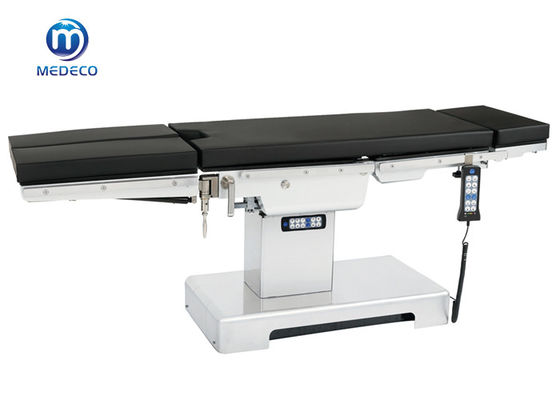

ME2000B Electric operation table (electric hydraulic)
ME2000B electric hydraulic operation table is applied for various operating in medical units.
Features of ME2000B Electric Operation Table:
1. The tabletop adopts high quality of carbon plastic plate, and it can slide, which is convenient for C arm exam and X-ray photography.
2. The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece. with no seam.
3. Using electro-hydraulic working principle. Hand held controller and panel controller are available to control various movements. Self-locking
4. Function is provided to avoid false triggering.
5. AC and DC can use at the same time t has the function of auto-restoration.
6. One press to“∧"or"“V”.
7. Imported sealing ring.
8. The table support frame is made of aluminum alloy die-casting and will never rust.
9. The base and rails on both sides of the table are 304 stainless steel.
10. Electric braking device, convenient for shifting the table.
11. The leg plate are controlled by imported gas spring. Leg plate is split and detachable.
| 1. Germany hydraulic engine |
| 2. Electromagnetic valve |
| 3. High-quality sealing ring |
| 4. AC/DC |
| 5. Auto restoration |
| 6. Do X-ray&C-arm |
| 7. The table top can be slided |
Accessories:

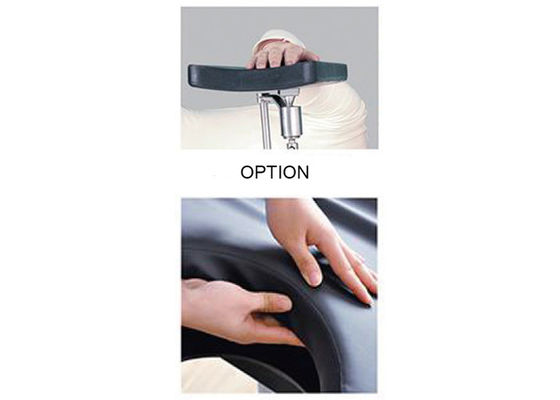

A Pair of Shoulder/waist Support, A Pair of Arm Support, A Pair of Leg Plate, A Screen.
TECHNICAL SPECIFICATION Of ME2000B Electric Operation Table:
| length: 2000±100mm |
| width: 520±20mm |
| min-max height: (700-1100)±50mm |
| Trendelenburg:≥25° Rev-Trend:≥35° |
| leftward:≥18° rightward:≥18° |
| horizontal and longitudinal movement:300±30mm |
| leg board fold downward:≥90° fold upward:≥10° |
| back board fold upward:≥70° fold downward:≥30° |
| head board fold upward:≥50° fold downward:≥90° |
| mains voltage: AC 220V±10% 50Hz |
| input power: 400VA |
FAQ:
Q1 : Whats your MOQ ?
Our MOQ is one psc, welcome to trial order before our formal cooperation.
Q2:If your company support OEM ?
Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.
Q3: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
