Product Details:
|
| Model: | ME2000C Electric Operation Table (electric Hydraulic) | Advantage 1: | High-quality Germany Hydraulic Engine |
|---|---|---|---|
| Advantage 2: | Good Quality Electromagnetic Valve | Advantage 3: | Imported Sealing Ring |
| Advantage 4: | Ultra-low Position For Long Time Operation | Advantage 5: | Leg Board Are Separated & Dischargeable |
| Advantage 6: | Waist Can Be Lifted | Length:: | 2000±100mm |
| Width:: | 520±20mm; | Min-max Height:: | (560-860)±50mm |
| High Light: | 520MM Width Electric OT Table,Electromagnetic Valve Electric OT Table,Stainless Steel 304 Electric OT Table |
||

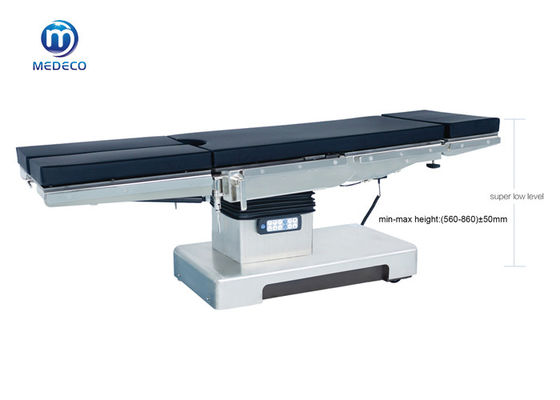

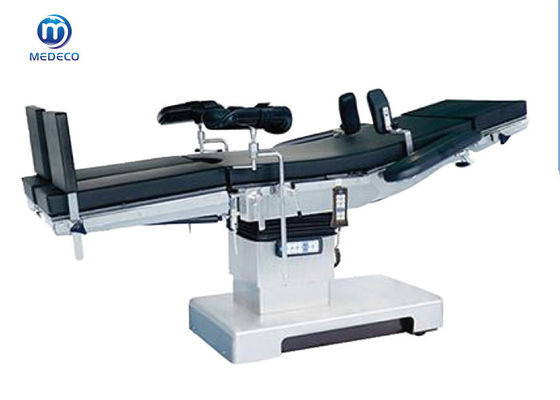

ME2000C Medical Electric operation table (electric hydraulic)
ME2000C electric hydraulic operation table is applied for various operating in medical units.
Features of ME2000C Electric Operation Table:
1. Super low level design
2. Quality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table.
3. The tabletop adopts high quality of carbon plastic plate which is convenient for X-ray exam and photography.
4. Using electro-hydraulic working principle, with ACand DC, control various actions through dual controllers.
5. The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.
6. Imported motors, pipes and solenoid valves.
7. Electric braking device, convenient for shifting the table.
8. The head board and leg plate are controlled by imported gas spring.
9. Leg plate is split and detachable
Accessories:
A Pair of shoulder/Waist Support, A Pair of Arm Support, A Pair of Leg plate, A Screen.
| 1.Imported hydraulic engine |
| 2.Impoted electromagnetic valve |
| 3.Impoted sealing ring |
| 4.Ultra-low position for long time operation |
| 5.Do X-ray |
| 6.leg board are separated & dischargeable |
| 7.waist can be lifted |
TECHNICAL SPECIFICATION Of ME2000C Electric Operation Table:
| length:2000±100mm |
| width: 520 ±20mm |
| min-max height:(560-860)±50mm |
| Trendelenburg:≥20° Rev-Trend:≥18° |
| leftward:≥20° rightward:≥20° |
| leg board fold downward:≥90° fold outward:≥180° |
| back board fold upward:≥70° fold downward:≥20° |
| head board fold upward:≥50° fold downward:≥90° |
| waist board lifting:120mm |
| mains voltage:AC 220V±10% 50Hz |
| input power:500VA |
FAQ:
Q1 : Whats your MOQ ?
Our MOQ is one psc, welcome to trial order before our formal cooperation.
Q2:If your company support OEM ?
Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.
Q3: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
