Product Details:
|
| Model: | II Led 700/500Square Arm Operating Light | Type: | Double Dome Germany Square Arm |
|---|---|---|---|
| Illuminance: | 40,000-160,000Lux | Diameter: | 700/500mm |
| Effective Bulb Service Life: | >50,000h | Colour Temperature: | 3500~5000K |
| Package: | Standrd Export Packing | Colour Index Ra: | >95 |
| Delivery Time: | 25-30 Days After Payment Be Received | Shipping: | By Air Or By Sea |
| High Light: | Medical Double Head Led Surgical Light,160000 Lux Double Dome Lamp,5000K OT Double Dome Lamp |
||

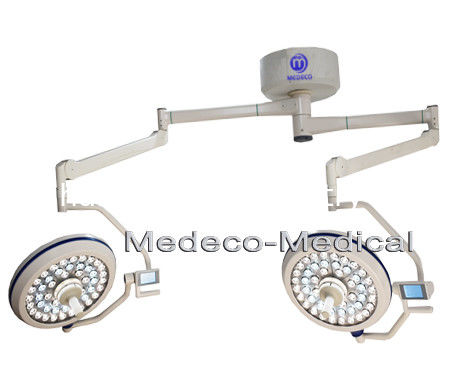

II LED 700/500 double dome Hospital Medical Equipment LED Operating Room Lights Surgical Light Germany Square Arm
Configuration for 700/500 LED Germany Square Arm LED Surgical Lamp
One 700 led light head with two sterilizer handling
one 500 led light head with two sterilizer handling
Two Germany Imported Balance Square Arm
One set light base with two rotating Arm.
700/500 LED Light Optioin :
Ceiling Type with emergency battery, which support 3-4 hours when the power is stopped.
HD Medical Camera system,
II LED 700/500 LED Operating Light Feature:
1. II LED Operating shadowless lamp using Germany LED Light Sources pass throught high-performance OSRAM lens;
2. The color temperature is adjustable from 3500kto 5000k by four levels, while maintain the color redering index Ra95;
3. The minimal life expectancy of each led is 50000hours, and each led can be replaced individually and on site.
4. The illumination intensity of 700 LED Operating light head can reach to 180,000lux;
5. The led lamp could Options:3-4 hours backup battery,wall-mode arm,mobile model base,HD camra system.
| Technical specifications | 700 LED OT Light Head | II LED500 |
| Central illuminance at 1m working distance | 40, 000~180,000 lux | 40, 000~160,000 lux |
| Focusable light-field size at 1 m distance | 120~300mm | 120~300mm |
| Colour temperature | 3500~5000K | 3500~5000K |
| Depth of Focus | >700mm | >700mm |
| Colour Index Ra | 95 | 95 |
| Power Supply | 110~240V 50/60Hz | 110~240V 50/60Hz |
| Effective bulb service life | >50, 000h | >50, 000h |
| Diameter of lamp housing | 700mm | 500mm |
| Power consumption (W) | 80 | 48 |
| Lamp Head LED bulbs Qty | 80 | 48 |
| Installation height (Ceiling type) | 280-320 cm | 280-320 cm |
500mobile Type with Battery LED Operating Light configuration:
1. one 500 lamp head
2. 2 sterilizer handling
3. Light Base castor with brake system
4. light support shelf
5. The lamp balance arm standard using Chinese Domestic Round arm
Option: Germany Square Arm, Chinese Square Arm
Square Arm support 360degree unlimited rotating.
FAQ:
What's our payment ways and methods?
Our payment ways is T/T: 30% before producing, and 70% before shipping the products.
L/C at sight and westunion.
Whats terms of the transaction ?
Our general quotation is EXW, after confirm details quantity with customer, will quote CFR.
We also support DDP.
Whats our delivery time for led light ?
For samll pc such as 1 pcs , the exact delivery time is about 5 days after get the payment.
For large pcs,such as 100 pcs, about one month after receive the advance payment.
