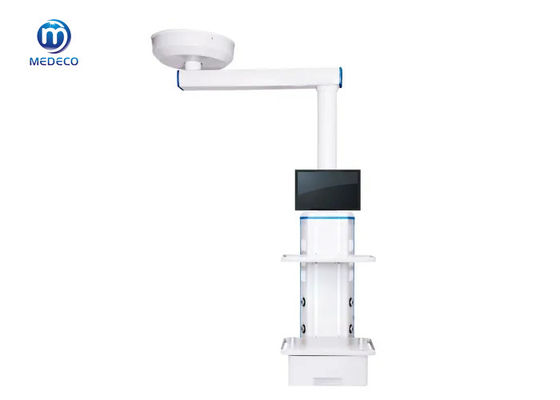

Product Details:
|
| Model: | ME-50SE Mechinical Surgical Pendant | Products Feture: | Simple And Compact Structure |
|---|---|---|---|
| Feture: | Rotation Range Up To Less Than 350 Degree | Nature: | Ceiling |
| Certification: | CE & ISO Certifications | N/W:: | One Arm 108KGS |
| G/W:: | One Arm 188KGS | SIZE:: | One Arm 0.49 CBM |
| Terminal Box: | ≤340 º | Lauguage: | Medical Gas Outlet Optional German / British /America/Japanese/ French /Chinese Standards |
| Rotary Arm Length: | 750-1000mm (customer Can Customize Arm Length) | Rotary Radius: | ≥750mm |
| High Light: | Mechanical Driven Endoscopy Pendant,Medical Single Arm Endoscopy Pendant,350 Degree Rotation Endoscopy Pendant |
||
Features of Single/Double Arm Medical Pendant ME-50SE:
1. Apply in operating room ,endoscope room.
2. Single arm, Each joint has a rotation range up to ≤350 degree.
3. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device.
4. One arm, can rotation, rotation angle≤350 degree.
5. High-strength aluminium alloy,wear-well reduce your cost
6. Pendant color blue ,red and so on
7. Pendant dimension can customize
9. Medical gas outlet optional German / British /America/Japanese/ French /Chinese standards.
10. Can horizontal rotation ,cannot lift.
Standard Configuration of Single Arm Medical Pendant ME-50SE
| Item | Parameter | Mark |
| Rotary arm length | 750-1000mm (customer can customize arm length) | Length is optional |
| Rotary radius | ≥750mm | |
| Net loading capacity | ≥180kg | |
| Equipment shelves loading capacity | ≥60kg | |
| standard configuration | O2*1 ,Air*1,Vac*1,socket*6,tray*2,drawer*1 | Standard optional |
| Level degrees rotation | ≤340 º | |
| Terminal box | ≤340 º | |
| Box length | ≥700mm | Length is optional |
| N/W: | 108KGS | |
| G/W: | 188KGS | |
| SIZE: | 0.49 CBM | |
FAQ:
1. If we support OEM ?
Yes, we support OEM, could make the brand with customer logo and nameplate.
2.Waht kinds of certification do we have ?
We have Ce certification and ISO Certification.
3. Whats our delivery time ?
For samll pc such as 1 pcs , the exact delivery time is about 5 days after get the payment.
For large pcs,such as 100 pcs, about one month after receive the advance payment.
4.What's your general shipping ways ?
Our general shipping ways is by sea, if customer is urgent also could arrange by air.
5. If there is battery inside the medical pendant ?
There is no battery.
