Product Details:
|
| Model: | ECOH005A Electric Operation Table | Length:: | L: 2100mm |
|---|---|---|---|
| Width:: | W: 500mm | Table Height:: | From 750 To 1000mm |
| Stroke:: | More Than 250mm Free To Lift, Lock | Advantage: | Table Top Can Be Moved Horizontally |
| Advantage 1: | Imported Movement | Leg Plate Spilt:: | More Than 90° Detachable |
| Power:: | Power: AC 220V ± 10%, 50HZ | Safe Working Load:: | More Than 135kg |
| Feature: | Back Plate Pneumatic Control | Material: | SUS304 Stainless Steel |
| High Light: | SUS304 OT Electric Operating Table,Medical SS Ophthalmic Operation Table,C Arm Fluoroscopy Ophthalmic Operation Table |
||

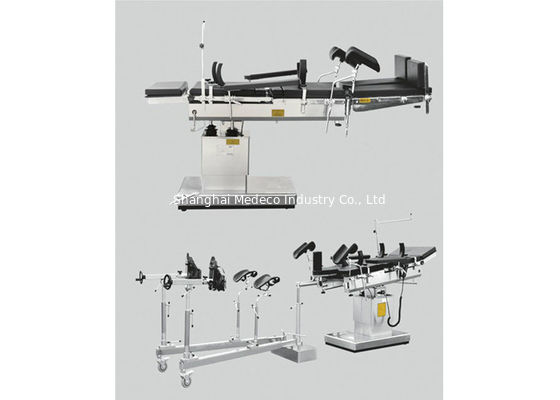

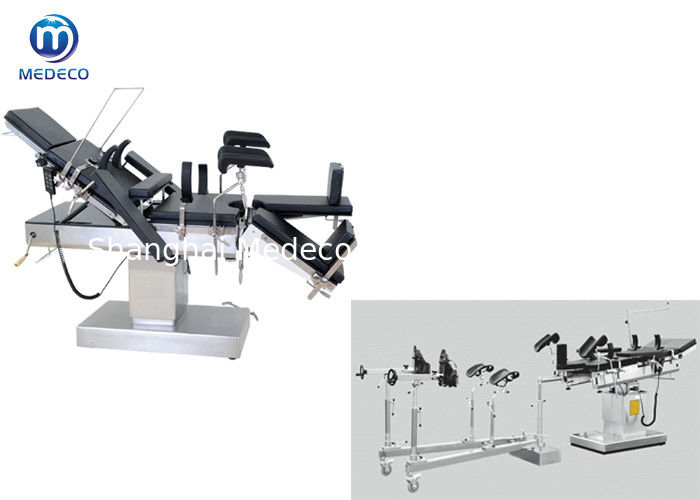

Medical Stainless Steel Electric Ophthalmic Operation Table with C-arm Fluoroscopy
ECOH005A Electric Operation Table is used for the various operating room of the hospital.
Advantages of ECOH005A Electric Operation Table:
1. The translational amount of the table top reaches 400mm. Installed C-arm fluoroscopy.
2, the head and leg plates can be disassembled, and can be equipped with orthopedic traction frame, head frame, etc. for lower limb orthopedic surgery and brain surgery.
3. Equipped with a built-in emergency power supply, the emergency power supply can automatically charge.
4. Air springs are used for folding back and leg plates.
5. The front of the table is tilted backward, left and right, up and down, and moved forward and backward.
6. All realized by motors and operated by buttons.
7. ECOH005A adopts 24V DC voltage, which is safe and reliable.
Specification Of ECOH005A Electric Operation Table:
| Length: | 2100mm | Width: | 500 mm |
| Table height: | 750 ~ 1000mm | Stroke: | ≥ 250mm free to lift, lock |
| Forward tilt: | ≥25° | backward tilt: | ≥25° |
| Left and right tilt: | ≥15° | head plate: | up ≥45° |
| head plate: | down ≥90° | back plate: | ≥45° |
| Waist rise lifting: | ≥80mm | Platform Horizontal movement: | ≥400mm |
| Power: | AC 220V ± 10%, 50HZ | Safe working load: | ≥135kg |
| Leg plate: | down ≥90° | Leg plate spilt: | ≥90° detachable |
| Foot plate can be 90° on the leg plate and can be removed. | |||
FAQ:
Q1 : Whats your MOQ ?
Our MOQ is one psc, welcome to trial order before our formal cooperation.
Q2:If your company support OEM ?
Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.
Q3: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
