Product Details:
|
| Model: | 3002 L Hydraulic Comprehensive Operation Table | Feature: | Universal Operating Table |
|---|---|---|---|
| Material: | Stainless Steel | Feature 1: | The Oil Pump Is Used For Lifting |
| Size（mm): | Length 2100 Width 500 | Table Height:: | From 750 To 950mm |
| Stroke: | ≥ 200mm, Free To Lift, Lock | Forward Tilt:: | Forward Tilt: ≥20° |
| Backward Tilt:: | Backward Tilt: ≥20° | Waist Rise Lifting:: | Waist Rise Lifting: ≥120mm |
| High Light: | Stainless Steel Manual Operation Theatre Table,950mm Multi Function Manual Surgical Table,280kg Side Operated Manual Surgical Table |
||

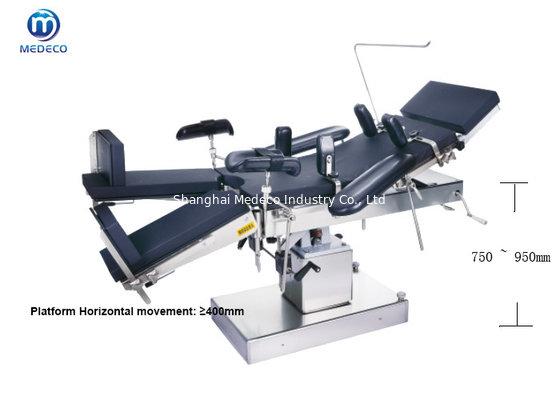

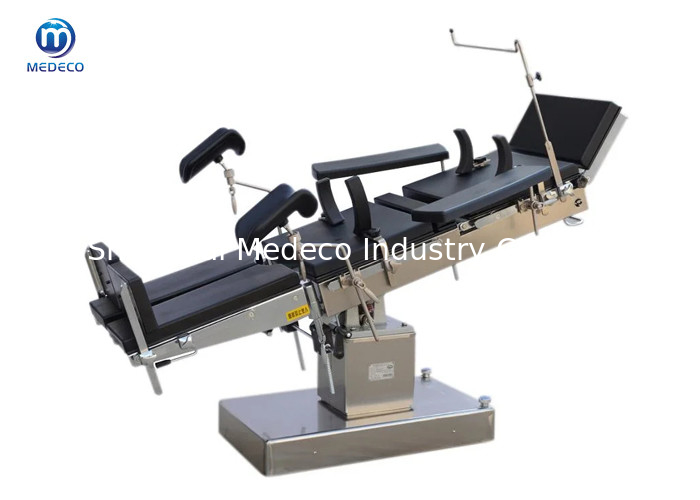

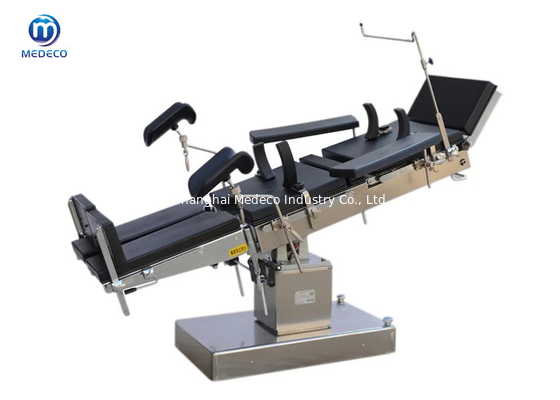

Medical Multi- Function Surgical Hydraulic Comprehensive Side-Operated Operation Table
3002 Hydraulic Comprehensive Operating Table:
This product is used for head, neck, thoracic-abdominal, perineum, limbs and other surgery, obstetrics and gynecology, ENT, orthopedics and other operations in hospital operating rooms.
Features of 3002 Hydraulic Comprehensive operating table:
1. With its total 4 section tabletop,3002 hydraulic operating table provides a wide range of positions for all operations.
2. All tabletop movements (except leg section ) can be operated on the side position by using handles.It's easy and smooth to operate all functions of the table.
3.The foot pedal drives the hydraulic pump and raises the table.When the pedal is treated to the bottom,the hydraulic pump system rises on and the table will be released downward.
4.With its total radio translucent tabletop ,the operating tables are easy to access the entire anatomy of the patient.
Parameters Of 3002 Hydraulic Comprehensive operating table:
| Model Specification |
3002 |
| Length ( mm) | 2100 |
| Width ( mm) | 500 |
| Min Height ( mm) | 750 |
| Max Height ( mm) | 950 |
|
Longitude Movement (mm) |
400 |
| Kidney Section Up ( mm) | 120 |
| Trendelenburg | 20° |
| Reversed Trendelenburg | 20° |
| Lateral Tilt | 18° |
| Back Section Up | 55° |
| Back Section Down | 0° |
| Head Section Up | 45° |
| Head Section Down | 90° |
| Leg Section Down | 90° |
| Leg Section open | 90° |
| Tabletop plate | 1 |
| Transport Dimension (cm) | 142*76*105 |
| G.W | 280kg |
RFQ :
1. What's the Min order ?
A: Our MOQ is 1 PC, we welcome new and old customers to place sample orders to experience our products and services.
2. What's your payment ways ?
A:Our payment ways as following:
If total value less than US$5000,we encourage customer pay all them in once time.
If total value more than US$5000, 30% TT before producing, and 70% TT before shipping time.
3. Can you support OEM using our band ?
A: Yes we are manufacture and we have strict quality control department, we could based on customer's demands printing their logo in the front of product, nameplate and other place.
