Product Details:
|
| Model: | 99E-1Electric Hydraulic Operating Table | Tabletop: | Tabletop 450mm |
|---|---|---|---|
| L*W*H: | 2100mm* 550 Mm*(720~1170)mm | Reversed Trendelenburg / Trendelenburg: | 25 / 20 |
| Lateral Tilt: | 18 | Head Section Up /down: | 45 /90 |
| Back Section Up /down: | 85 / 40 | Leg Plate Down / Open: | 90 / 90 |
| High Light: | 99E-1 Hydraulic Operating Table,Medical Electric Operating Table 450mm,Hydraulic Operating Theatre Table |
||

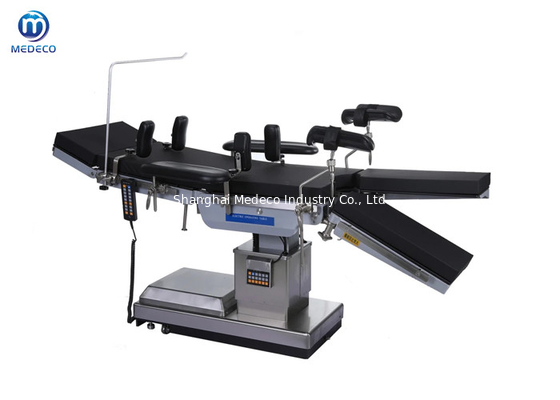

Medical top quality high grade electric hydraulic operating table 99E-1
Electric Hydraulic Operating Table 99E-1 Features :
1.Low lift and the distance of the tbletop is 450mm.There is ample space for use with C-arm.
2.vertical panning up to 500mm,no need to reverse out painter or adjust the table in advance to general c-arm pivot to the patient and image review.
3.The operating table has emergency power ,can be used when the electric power is off.
Specification of Electric Hydraulic Operating Table 99E-1:
| L*W*H | 2100mm* 550 mm*(720~1170)mm |
| Reversed Trendelenburg / Trendelenburg | 25 / 20 |
| Lateral tilt | 18 |
| Head section up /down | 45 /90 |
| Back section up /down | 85 / 40 |
| Leg plate down / open | 90 / 90 |
| Kidney section up | 85mm |
| Tabletop slidiing | 500mm |
| V position / anti-V position | 100° / 220° |
| Working load | 250KG |
