Product Details:
|
| Model: | V LED Operating Light 700 500 | 500 Luminance: | 10,000~150,000Lux |
|---|---|---|---|
| 700 Illumination: | 15,000-160,000 Lux | Votage: | AC 110~240V 50/60Hz |
| Service Life: | More Than 50,000hours | Diming Range: | 8%-100% 11 Steps |
| Color Temperature: | 4000-5000K | Warranty: | 2 Years,1 Year |
| Luminance(Lux): | 15000-160000 / 10000-150000 | Focusable Light-field Size(mm): | 120-250 |
| Illumination Depth(cm): | ≥700mm | Red Color Index(R9): | 95 |
| Head Power(W): | 80/50 | Installation Height(Ceiling Type)(mm): | 2800-3200mm |

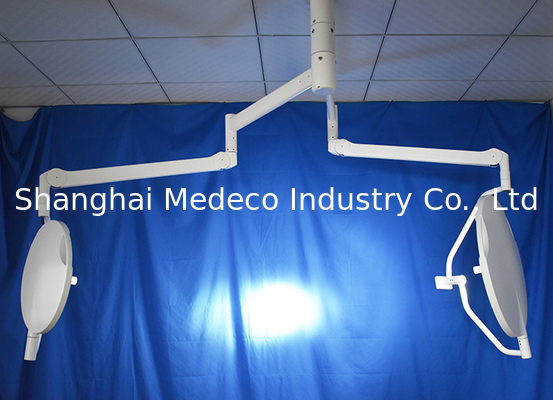

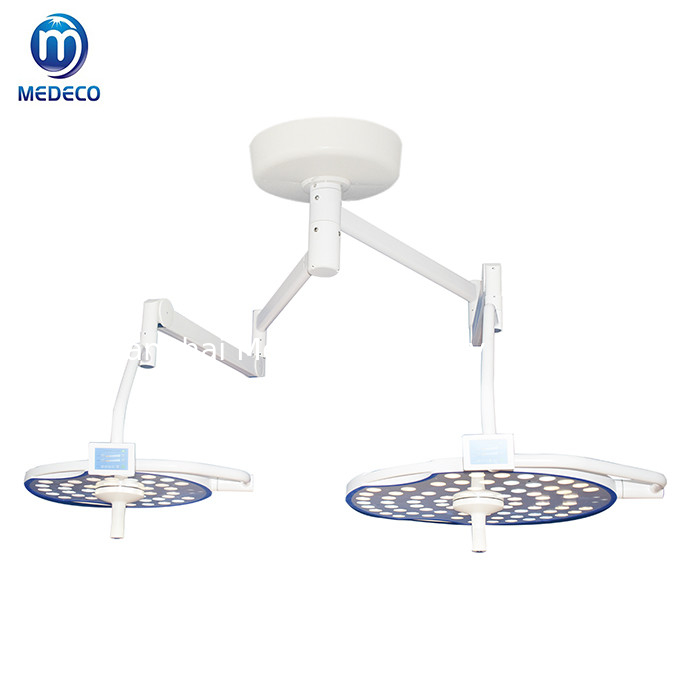

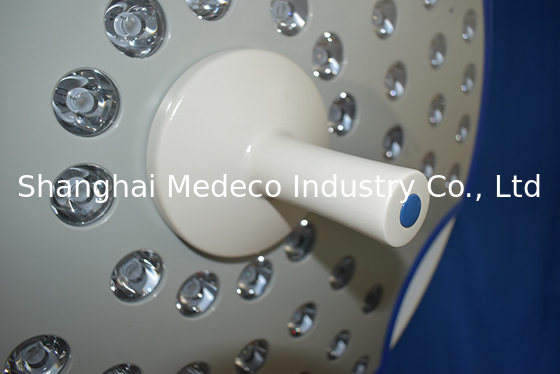

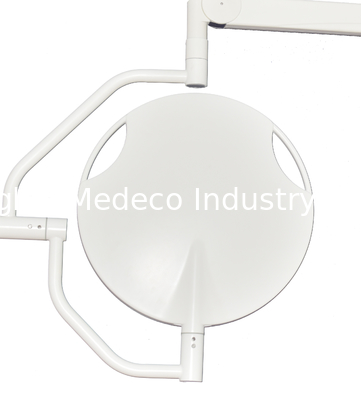

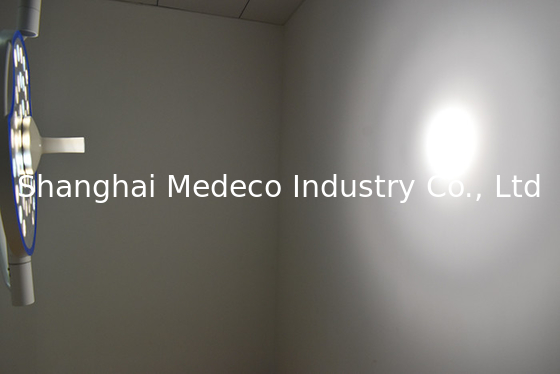

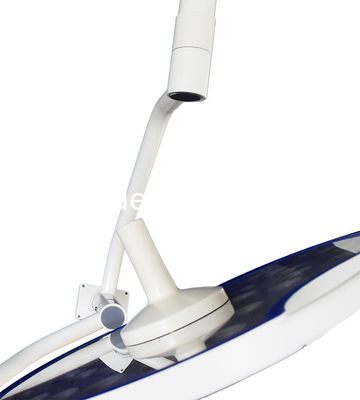

MEDECO V series LED Operating Light fully enclosed conforms to aerodynamic streamline ultraa-thin lamp body design, disinfection, more convenient and flexible operation.
Having excellent medical lighting effects and wide applicability, its an ideal surgical shadowless lighting system that meets the requirement of comprehensive hospitals, beauty salons, dental clinics, dental hospitals and pet hospitals operating rooms.
| Model/ | V LED700/700 | V LED700/500 | VLED500/500 | V LED500 | VLED 70 |
|
mm) Diameter of Light dome(mm) |
700/700 | 700/500 | 500/500 | 500 | 700 |
|
LED bulbs(pcs) |
78/78 | 78/42 | 42/42 | 42 | 78 |
|
Luminance(Lux) |
15000-160000 / 10000-160000
|
15000-160000 / 10000-150000 |
10000-150000 / 10000-150000 |
10000-150000 | 15000-160000 |
|
Focusable light-field size(mm) |
120-250 | 120-250 | 120-250 | 120-250 | 120-250 |
|
Color Temp. |
4000-5500K | 4000-5500K | 4000-5500K | 4000-5500K | 4000-5500K |
|
Illumination Depth(cm) |
≥700mm | ≥700mm | ≥700mm | ≥700mm | ≥700mm |
|
Red Color Index(R9) |
95 | 95 | 95 | 95 | 95 |
|
Dimming Range
|
8-100% 11 STEP | ||||
|
Endoscopy Model |
yes | ||||
|
Votage Frequency |
110~220V 50/60Hz | ||||
|
Head Power(W) |
80/80 | 80/50 | 50/50 | 50 | 80 |
|
LED bulbs Service Life hours |
≥50000 | ||||
|
Installation height(Ceiling Type)(mm) |
2800-3200mm | ||||
| (Optional) | (Emergency battery) HD Camera system | ||||
Main performance characteristics of BEDFORDMED V LED:
1. Totally enclosed aerodynamic streamline design: The lamp dome adopts a once formed fully enclosed streamline design, without exposed screws, without spraying and painting, and is ultra-thin (the lamp cap is only 52 mm thick). The surface of the fully enclosed dome is waterproof, dust-proof, and free of dead corners hidden by bacteria. Moreover, due to its overall ultra-thin and lightweight design, disinfection and cleaning are more convenient.
2.The first company to use a special new type of high-temperature resistant material in a shadowless lamp system: the entire shell is lightweight and beautiful, resistant to ultra-high temperatures, and the test results show no deformation or discoloration within 400 degrees Celsius. Simultaneously possessing the high strength, toughness, thermal conductivity, and flame retardancy of metal materials. However, without the magnetic characteristics of metal materials, it is more suitable for use in the operating room and will not cause electromagnetic interference to other products.
3.Multiple heat dissipation design: laminar flow heat dissipation, surface radiation heat dissipation transmits heat from the LED chip to the outside, ensuring that the system operates at relatively low temperatures, achieving maximum luminous effect with minimal power, and effectively improving the service life of LED beads.
FAQ:
If your company support OEM ?
Yes, we support OEM, You just sent me our your logo and requirement, we will print th logo in the products and nameplate.
What's our payment ways and methods?
Our payment ways is T/T: 30% before producing, and 70% before shipping the products.
L/C at sight and westunion.
Whats our delivery time for led light ?
For samll pc such as 1 pcs , the exact delivery time is about 5 days after get the payment.
For large pcs,such as 100 pcs, about one month after receive the advance payment.
What's your general shipping ways ?
Our general shipping ways is by sea, if customer is urgent also could arrange by air.
