Product Details:
|
| Model: | V LED500 Operating Light | Diameter Of Light Dome: | 500mm |
|---|---|---|---|
| LED Bulbs(pcs): | 42 | Luminance(Lux): | 10,000~150,000 |
| Advantage:: | V LED500 Can Reach To 180,000Lux | Focusable Light-field Size: | 120-250(mm) |
| Color Temp.: | 4000-5500K | Dimmig Range: | 8%-100% 11 Step |
| Illumination Depth(cm): | ≥700mm | Red Color Index(R9): | 95 |
| Votage / Frequency: | AC 110~220V 50/60Hz | Head Power(W): | 50 |
| LED Bulbs Service Life Hours: | ＞50000hours | Installation Height(Ceiling Type)(mm): | 2800-3200mm |

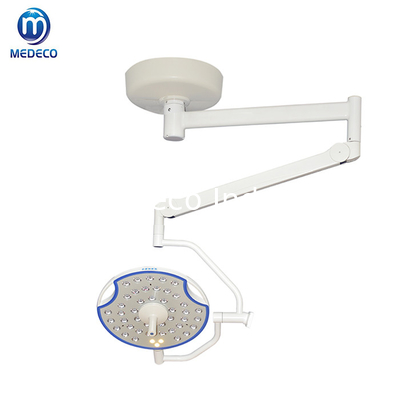

New V Series Medical LED Operating Light Ceiling Type 500mm Operaitng Light
Main Characteristics of New V Series LED Operating Light:
1.The lamp dome adopts a once formed fully enclosed streamline design.
2.The lamp cap is only 52 mm thick.
3.Use a special new type of high-temperature resistant material in a shadowless lamp system.
4.Multiple heat dissipation design
5.All LED chips use original OSRAM high color reproduction LED
Specification and model:
V LED700/700, V LED700/500, V LED500/500,
V LED700, V LED500, V LED700 MOBILE, V LED500 MOBILE
V LED700 MOBILE WITH BATTERY, V LED500 MOBILE WITH BATTERY
Parameters of New V Series LED Operating Light:
| Model | V LED500 | VLED 700 |
| Diameter of Light dome (mm) | 500 | 700 |
| LED bulbs(pcs) | 42 | 78 |
| Luminance(Lux) |
10000-150000 | 15000-160000 |
|
Option: Adjustable Max. Light Intensity: V LED 700 can reach to 200,000Lux; V LED 500 can reach to 180,000Lux |
||
| Focusable light-field size(mm) | 120-250 | 120-250 |
| Color Temp. | 4000-5500K | 4000-5500K |
| Illumination Depth(cm) | ≥700mm | ≥700mm |
| Red Color Index(R9) | 95 | 95 |
|
Dimming Range
|
8-100% 11 STEPS | |
| Endoscopy Model | yes | |
| Votage / Frequency | AC 110~220V 50/60Hz | |
| Head Power(W) | 50 | 80 |
| LED bulbs Service Life Hours | ＞50000hours | |
| Installation height(Ceiling Type)(mm) | 2800-3200mm | |
FAQ:
Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 25-35 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: MOQ is 1 set.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
