Product Details:
|
| Model No.: | DT-12B Hydraulic Surgical Table | Length And Width: | 2060mmx500mm |
|---|---|---|---|
| Lowest Height Of The Bed Surface: | >=720mm | Lift Range Of The Bed Surface: | >=250mm |
| Left/Right Inclination Of Bed Surface: | >=16°/>=16° | Front/Back Inclination Of The Bed Surface: | >=20°/>=20° |
| Up/Down-folding Of Head Board: | >=50°/>=90° | Lifting Of Waist Bridge: | >=80mm |
| Up-folding Of Back Board: | >=45° | Outward Turning Of Leg Plate: | >=90° |
| Power Supply: | Ac220V 50Hz | Translation Of The Bed Surface: | >=400mm |
| Anesthesia Screen Holder: | 1piece | Body-binding Band: | 1piece |
| Power Supply Line: | 1piece | Waist Bridge Hand Shank: | 1piece |

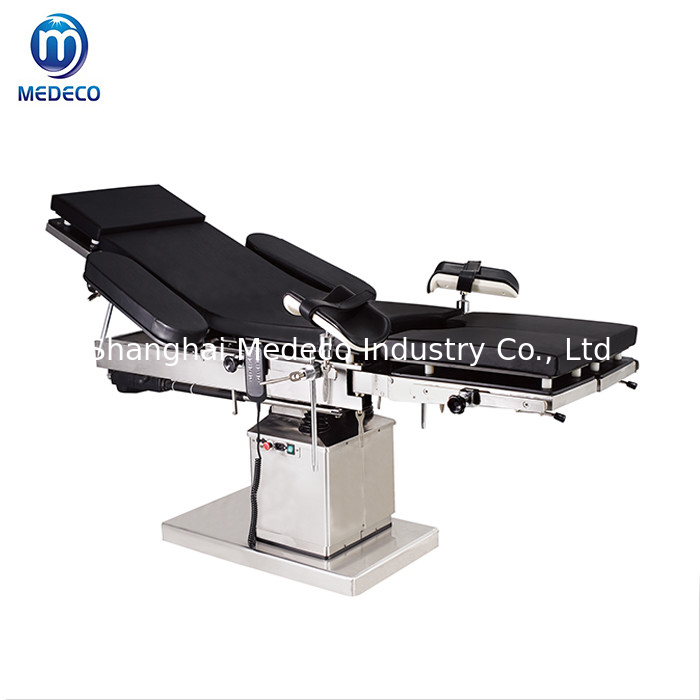

DT-12B Clinic Thearpy Operation table Medical Table Hospital Equipment

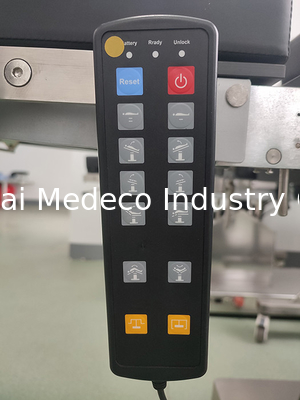

DT-12B electric operating table is powered by electric power, and the main control structure is composed of a manual controller and an electric push rod. The power source is provided by an electric push rod to control the reciprocating motion of each action, and the operating table is controlled by a manual controller to carry out various position changes, with the functions of overall lifting, left-right tilt, forward and backward tilt, folding on the backplane, translation, etc., so that it can meet the requirements of surgical operation. The production design conforms to the ergonomic design, which can effectively reduce the labor intensity of medical staff. Beautiful appearance, quiet design, high surface finish, corrosion resistance, the bed body is composed of 304 stainless steel advanced materials, the base fixed and moved by foot brake device to control, the base, lifting column and other main transmission structure are all covered with 304 stainless steel. The bed plate is composed of high-strength carbon plate which is resistant to dirt, acid and alkali, refractory and durable, and has good X-ray penetration. The mattress is made of imported sewn leather, which needs to be wiped with alcohol, convenient and safe, complete functions, high control accuracy and long service life. It is suitable for surgery, gynecology, urology, ophthalmology, plastic surgery, 菑 enterology, ENT and other departments.
This Operating table is suitable for surgical procedures of the head,neck, thorax and abdomen,perineum and extremities as well as for gynecology, otorhino-laryngological and orthopaedics ,operation.The table's elevation,lowering ,reversed trendelienburg, trendelenburg, lateral tilt can be all automatically controlled.
Leg section for surgical table can be rotated, opeded, disassembled and adjusted easily.
| Table height | 720mm |
| Length and width | 2060mmx500mm |
| Left/Right inclination of bed surface | 16/16 |
| Front/Back inclination of the bed surface | 20/20 |
| Up/Down-folding of head board | >=50°/>=90° |
| Lift range of the bed surface | >=250mm |
| Lifting of Waist Bridge | >=80mm |
| Down-folding leg plate | >=90° |
| Up-folding of back board | >=45° |
| Outward turning of leg plate | >=90° |
| Leg-putting frame | 1pair |
| Arm-putting frame | 1pair |

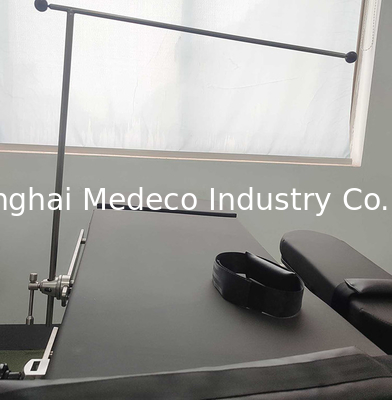

| Anesthesia screen holder | 1piece |
| Waist bridge hand shank | 1piece |
| Power supply | Ac220V 50Hz |
Standard Accessories
1. Pads
2. Leg bracket
3. Arm rest
4. shoulder rest
5. Body support
6. Anesthetic Screen
7. Body restraint strap
RFQ :
2. What's your payment ways ?
A:Our payment ways as following:
If total value less than US$5000,we encourage customer pay all them in once time.
If total value more than US$5000, 30% TT before producing, and 70% TT before shipping time.
3. Can you support OEM using our band ?
A: Yes we are manuafacture and we have strict quality control department, we coul based on customer's demands printing their logo in the front of product, nameplate and other place.
4. How can I place a real order with your company?
A: Firstly,please let us know your details demands and specification and then we will recommends our suitable model;
Secondly, after confirming no problems for the model, confirming the quantity.
Thirdly, we will based on above information checking the best shipping ways.
Fourthly, We all details was confirmed, we will make a formal INvoice, after we get the deposit ,the order will be arranged.
5. How about the delivery time and shipping time ?
For some samll sample order, we generally using by airline, the delivery time about withion one week after receive payment, shipping time by air is about 7-10 days.
For large volume order, we recommend using by sea, the details shipping time will based on fact situation.
6. What kinds of certification do your company have ?
We have Ce certification and ISO Certificatioin.
Shanghai Medeco one excellent medical equipment manufacturer, offering a combination of medical equipment to distributor, clinic, hospitals and medical institutions around the globe. We specializes in Operating lamp, LED Shadowless Lamp, LED Examination lamp, Manual Operating table, Electric Operating Table, Obstetrics & Gynecology Table, Examination Table, Medical pendant ,Hospital furniture and much more.
Shanghai MEDECO Industry Co.,Ltd. established the manufacturing and R&D base for medical equipment, and has built the brand of “MEDECO” and “Mermaid” successfully. We gather a large number of high-quality technology professionals and production workers, establishe and improve the enterprise management and quality assurance system, complete with its own design, the ability of independent production.
