Product Details:
|
| Model: | LED Operating Light ECOP002 | Central Llluminance (Lux): | 160, 000 |
|---|---|---|---|
| Color Rendering Index(Ra): | 94 | Color Temperature(K): | 4300 |
| Focusable Light-Field Size ( Mm): | 150-300 | Effective Bulb Service Life(Hour): | 30, 000 |
| Diameter Lamp Housing(mm): | 700 | Lighting Depth L1+L2 (mm): | 1200 |
| Lamp Power(W): | 80 | Installation Height(Ceiling Type): | 2.9m |

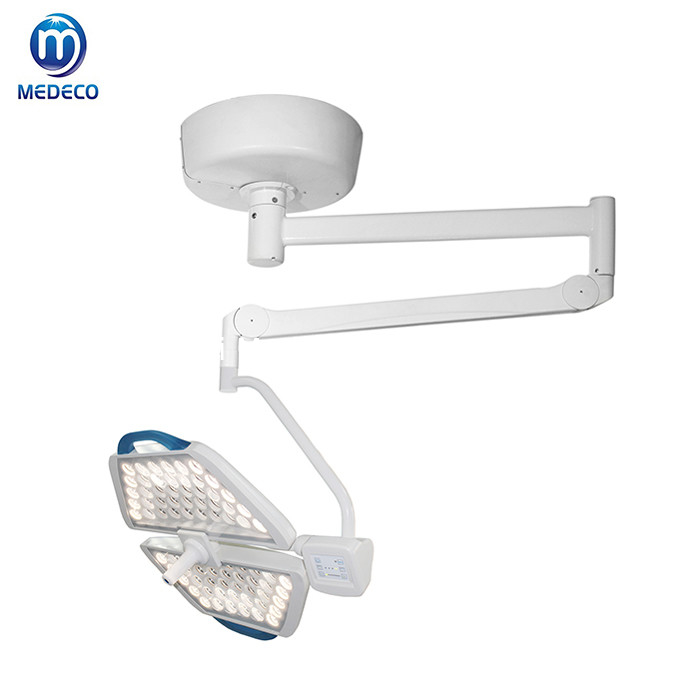

The ceiling type of shadowless lamp is easy to use and easy to operate, and the operating lamp uses the LED lamp source, which consumes less energy than the ordinary one, has a longer service life and is more durable.
The light source of the LED operating shadowless lamp has better stability, does not appear frequent flickering or unstable light, and can provide more uniform light and enough lighting. It allows the doctor to clearly see the surgical site and facilitate accurate surgical operations.
Features
1.The light can satisfy different light spot requirements throughits special optical software design.
2.With 360° rotation and light arm, ensures the light to be moved easily and freely.
3.With over 30,000 hours effective working life, can extremely save the hospitals maintenance cost.Has high reliability asit adopts top-levell LED moulder.
4.The unique spectral optical filter ensures the correct high restoration light.
5.BEDFORDMED LED OPERATING LIGHT is easy for cleaning and can save more space through its streamline and ultrathin appearance design.
Advangtages
1.Excellent depth lighting:
With computeraided modular design, multiple LED light columns are focused to illuminate the depth of light columns above 600 mm, the center illuminance is up to more than 160000lnx, and provides 3000K~6700K tunable color temperature close to natural daylight, which truly reflects the color of human tissue and fully meets the needs of various surgical lighting.
2.Perfect cold light effect:
LED new cold light source does not produce infrared and ultraviolet radiation, no halogen light on the wound caused by temperature rise and tissue damage, accelerate postoperative wound healing, and no radiation pollution.
LED color temperature is constant, color temperature color does not decay, soft and not dazzling, very close to the natural sun light.
3. Universal suspension system:
Rotating arm, using a new colddrawing molding, balancing system using domestic spring components, light structure, easy to control, accurate positioning, can provide the largest adjustment range, with fatigue correction device and positioning feel adjustment device, easy to locate and adjust after regular use.
Specifications
| Model | ECOP002 Ceiling Operating Lamps |
| llumination at 1m(lux) | 160,000 |
| Color Rendering Index(Ra) | 94 |
| Color Temperature(K) | A:4300 |
| B:3500 4000 4500 5000(Option) | |
| Focusable Light-field Size ( mm) | 150-300 |
| Effective Bulb Service Life(hour) | 30,000 |
| Diameter Lamp Housing(mm) | 700 |
| Lighting Depth L1+L2 (mm) | 1200 |
| Lamp Power(w) | 80 |
HD Camera(Option) Specifications
| lmage Sensor | 1/2''CMOS |
| Effective Number of Pixel(Resolution) | >2 million pixels(1920*1080) |
| Aspect Ratio | 16:9 |
| Video Recording | 1080 |
| Lens |
10*optical zoom & 16*digital zoom |
| F=1.8-2.5(f=6.3-63mm) | |
| Minimum Luminance | Colour 2.OLux,BlackWhite 0.1LuX |
| White Balance | Outdoorlindoorlfluorescent light/halogen light/LED light model, signal can be adjusted |
| Minimum Object Distance | 800mm |
| Signal/ Noise Ratio | >50dB |
| Outpit Connection | 1.HD SDI 2.HDMI |
